Drop Cable Wire Clamp DT-A09O

S Hook Tension Clamp DT-A09S
ADSS Tension Suspension Clamp DT-B07

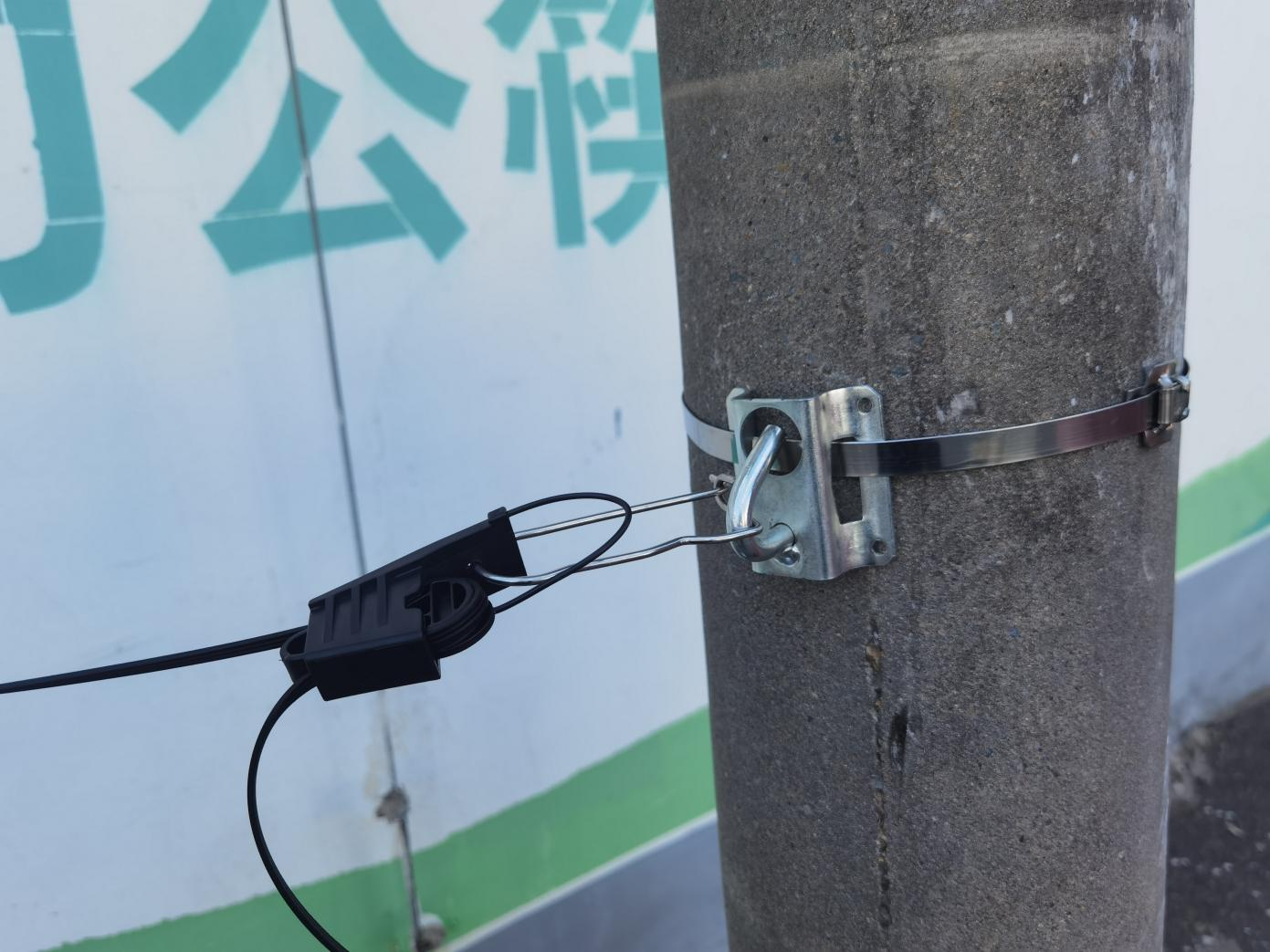

This Clamp consists of two parts: stainless steel draw hook and reinforced nylon. The open wire hook provide the universal fixating on the closed hook mounts, during aerial fiber optic cable installation. The hook was made as non drop off part. The drop wire clamp has self adjusted wedge, with prevents the cable from damages. The types of optical cables applicable to wedge radius are small circular optical cables and butterfly optical cables.The radius of wedge-shaped optical cable fully meets the requirements of the minimum bending radius of optical fiber.

Categories: ,

Description

Specifications:

Size: 150*100*25mm

Material: SS201 or SS304, PA6

Withstand tensile force：0.6KN

Weight: 32g

Applicable wire diameter size：Φ2-5mm

Warranty time: 10 years

Features:

1. 201 304 stainless steel wire diameter can be customized.

2. Tool free installation.

3. Self-adjustment by hand.

4. U-shaped design of optical cable in  and out in the same direction.

5. Work with different shapes of hooks.

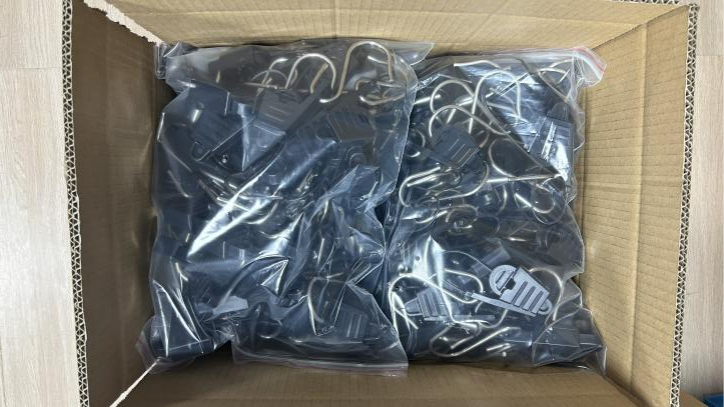

Packaging Information:

Outside the carton size: 40*30*30cm

Outside the carton weight: 13kg

Each box number: 300pcs

Every small bag: 50pcs
