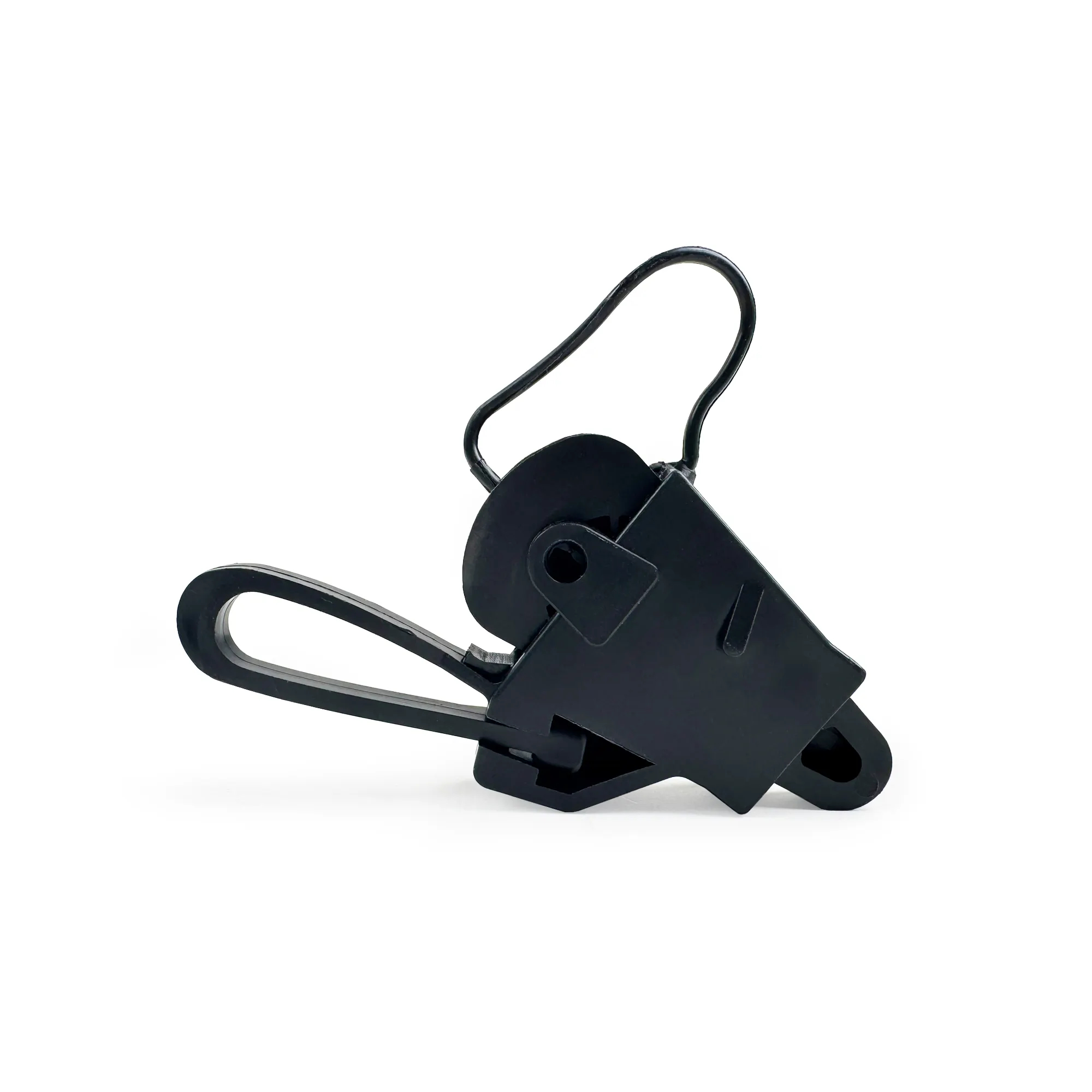

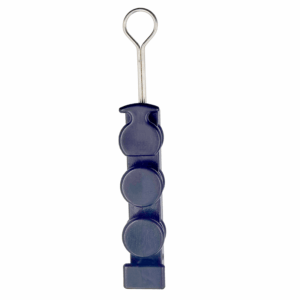

Drop Cable Wire Clamp DT-A13

The wire clamp consists of two parts: stainless steel 201 or 304 material retractor and reinforced nylon material body.Different from other S-shaped wire clamps, this type of wire clamp has an additional winding ring, which can make the winding part more secure.When we produce nylon material, we can make material formula according to customer’s tension requirements .We can reach 1.3kN for all kinds of tension requirements.Metal hook We also have special shape design to meet the different use environment of customers.The product is mainly used in FTTH butterfly cable, which has very strong tensile force and good corrosion resistance and high temperature resistance and high toughness. We will provide you with the most professional product performance support to meet your requirements.

Description

Specifications:

Size: 160*35*23mm

Material: SS201 or SS304, PA6

Withstand tensile force:1.3KN

Weight: 65g

Applicable wire diameter size:Φ2-5mm

Warranty time: 10 years

Features:

1. Strong UV protection.

2. High corrosion resistance.

3. Flexible tension choice of 1.3 kN.

4. Metal hook Available in various shapes.

Packaging Information:

Outside the carton size: 40*30*30cm

Outside the carton weight: 14kg

Each box number: 200pcs

Every small bag: 50pcs
