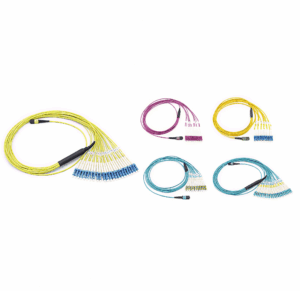

MPO Fanout Hybrid Patch Cord

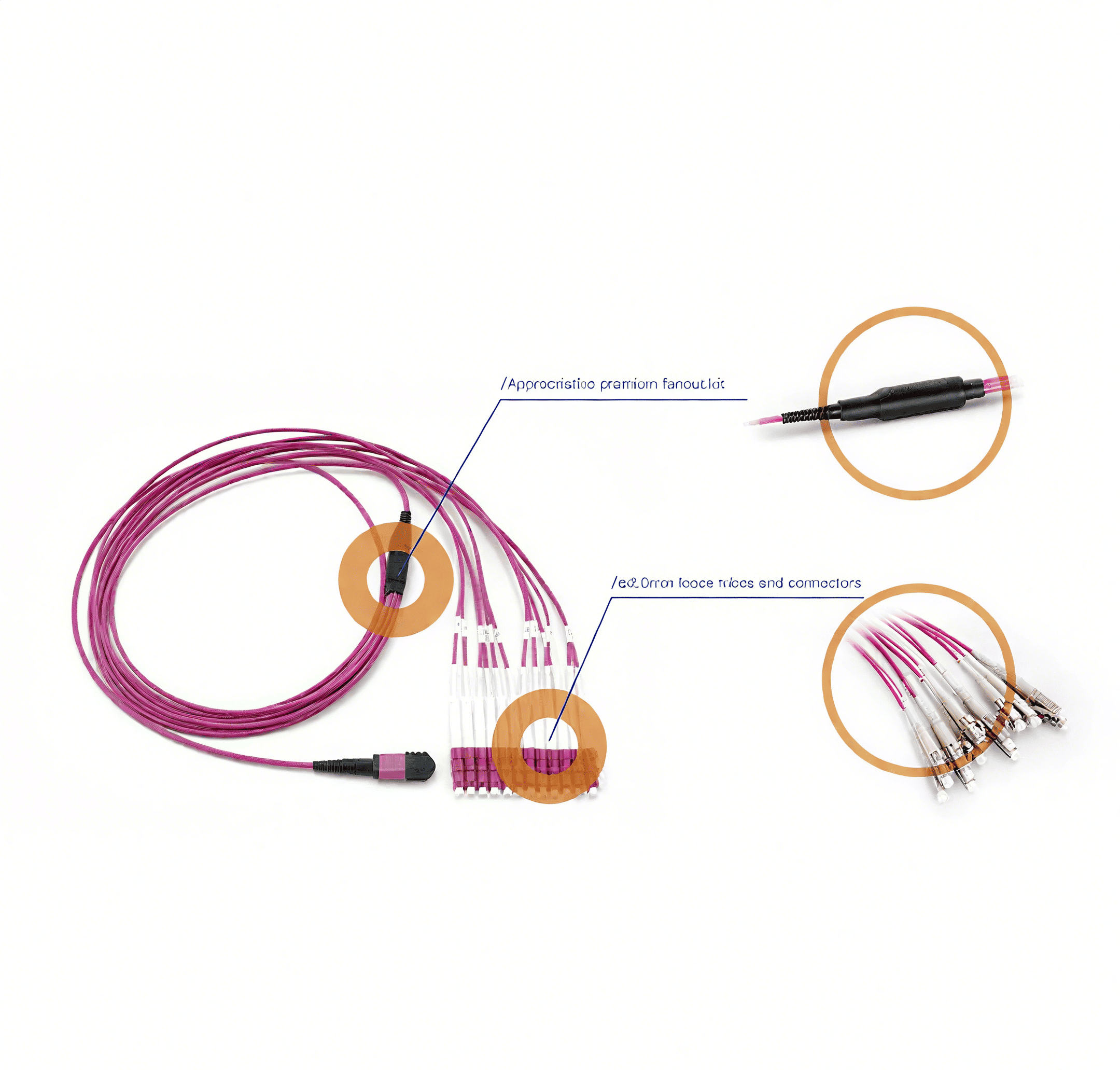

MPO Fanout Hybrid Patch Cord is mainly used to connect QSFP and SFP modules, or MPO and the LC connectors. Normally, OD of the fanout cables is 2.0mm.
- Description
Description
| Parameter | Options/Typical Values | Description |
|---|---|---|
| MPO Specification | MPO-12, MPO-24, MPO-32 | Must match transceiver interface (e.g., MPO-24 for 100G, MPO-32 for 400G). |

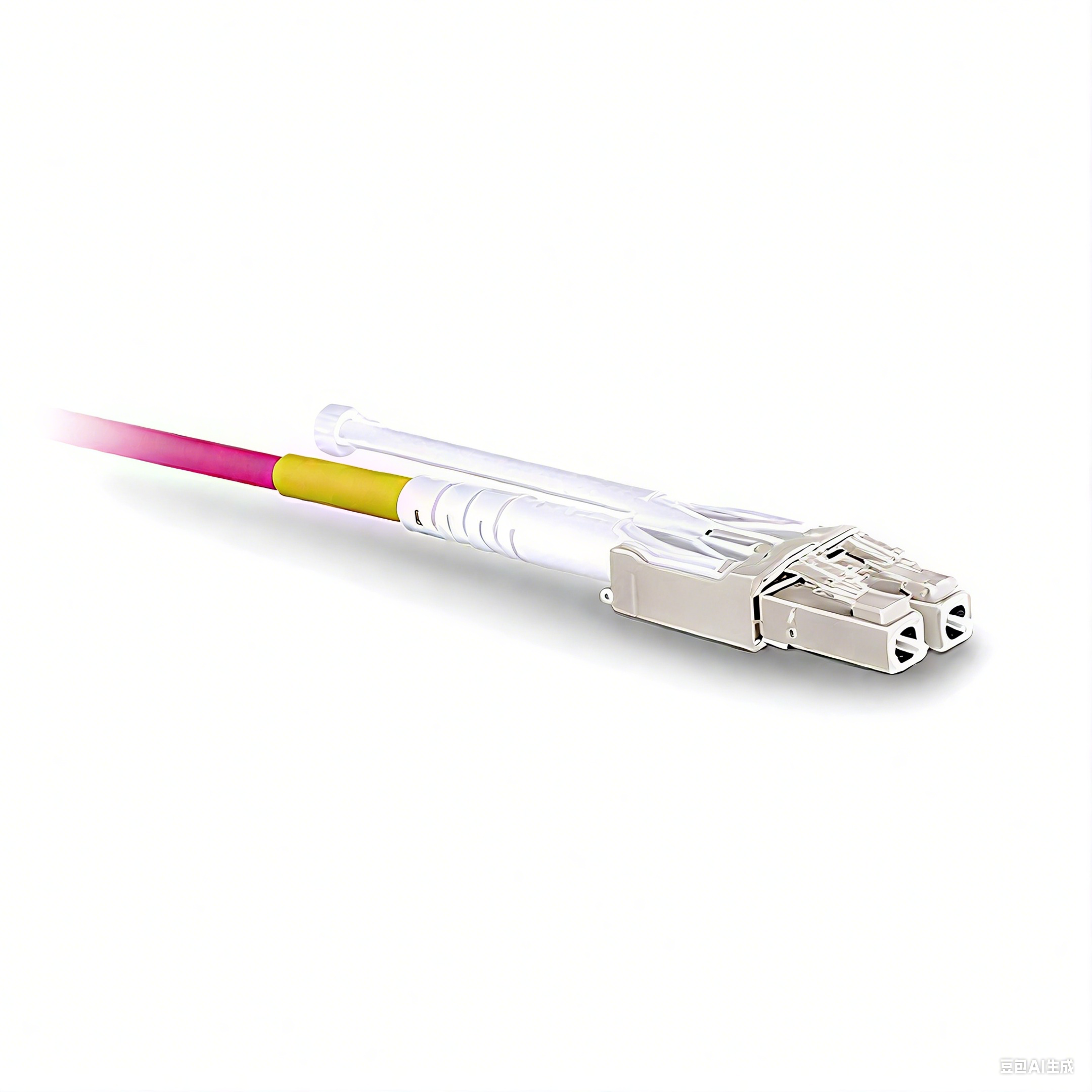

| Breakout Connector Type | LC Duplex, SC, MTP, etc. | LC Duplex is most common, supporting high-speed Ethernet (e.g., 100G-SR4). |
| Fiber Type | Multimode (OM3/OM4/OM5), Singlemode (OS2) | Multimode for short reach (OM4 supports 100G-SR4 up to 100m), Singlemode for long reach (OS2 supports 10km+). |
| Polarity Scheme | Type A, Type B, Type C | Type B most common (MPO end 1 → Breakout end 12), ensuring proper Tx/Rx alignment. |
| Insertion Loss | ≤0.5 dB (Multimode), ≤0.7 dB (Singlemode) | Factory termination standard, must be included in link budget calculations. |
| Jacket Type | LSZH (Low Smoke Zero Halogen), OFNR | LSZH recommended for data centers, OFNR for higher fire safety requirements. |
Key Features:
