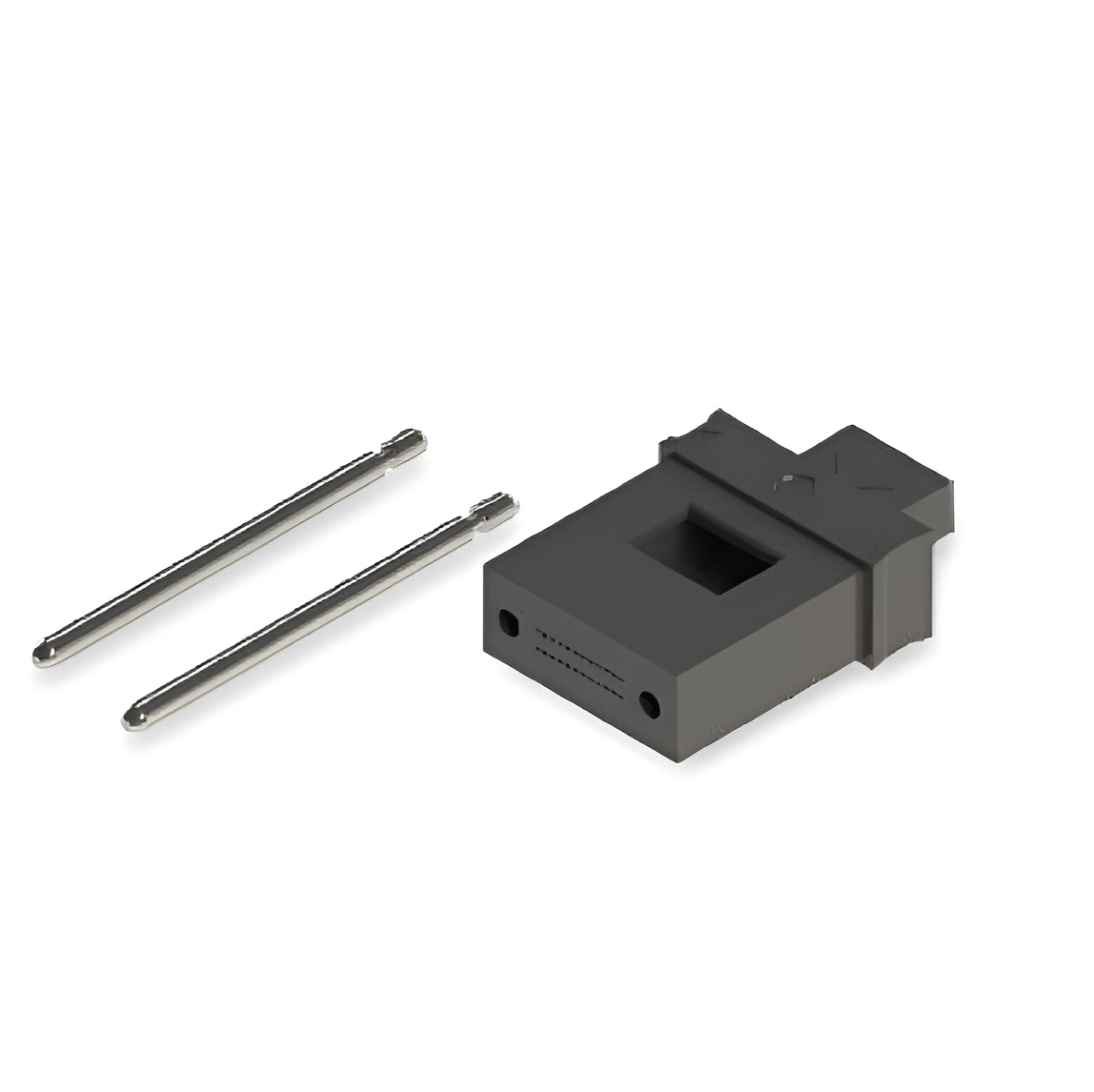

MPO Ferrules

The ferrule is a precision component in MPO (Multi-fiber Push-On) connectors that serves to secure and precisely align multiple optical fibers, with its key functions including fiber positioning to ensure each fiber’s correct alignment during connection, mechanical protection to shield fibers from damage during insertion or removal, and optical alignment through high-precision holes (V-grooves or multi-hole arrays) to achieve tight contact between fiber end-faces and minimize optical signal loss.

Description

    Name                Aperture of ferrule/mm        Aperture of pins/mm       Concentricity error/mm      Material

4MT(MM)                         0.127±0.001                           0.7±0.001                                         <0.0025                               PPS

8MT(MM)                          0.127±0.001                                  0.7±0.001                                        <0.0025                               PPS

8MT(MM Low Loss)        0.126+0.001/-0                            0.7+0/-0.001                                  <0.0014                               PPS

8MT(SM)                            0.125+0.001/-0                            0.7+0/-0.001                                  <0.0014                               PPS

8MT(SM Low Loss)          0.125+0.005/-0                           0.6990                                              <0.0007                               PPS

12MT(MM)                        0.127±0.001                                   0.7±0.001                                        <0.0025                               PPS

12MT(MM Low Loss)      0.126+0.001/-0                             0.7+0/-0.001                                  <0.0014                               PPS

12MT(SM)                          0.125+0.001/-0                            0.7+0/-0.001                                  <0.0014                               PPS

12MT(SM Low Loss)        0.125+0.005/-0                            0.6990                                              <0.0007                              PPS

24MT(MM)                        0.127±0.001                                   0.7±0.001                                        <0.0025                               PPS

24MT(MM Low Loss)      0.126+0.001/-0                             0.7+0/-0.001                                  <0.0014                               PPS

24MT(SM)                          0.125+0.001/-0                            0.7+0/-0.001                                  <0.0014                               PPS

24MT(SM Low Loss)        0.125+0.005/-0                            0.6990                                              <0.0007                              PPS

48MT(MM)                        0.127±0.001                                   0.7±0.001                                        <0.0025                               PPS

48MT(SM)                          0.125+0.001/-0                            0.7+0/-0.001                                  <0.0014                               PPS
