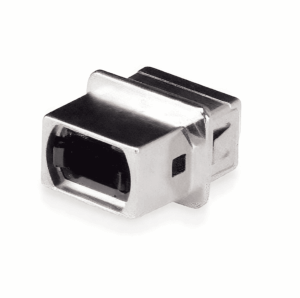

MPO Metal Adapter
The MPO Metal Housing Adapter is a kind of optical fiber adapter with a metal material housing, which is used to connect MPO multi-core optical fiber connectors (such as 12-core, 24-core), and is mainly applied in optical fiber communication systems in high-reliability and harsh environments.
- Description
Description
| Parameter | Description | Typical Value/Options |
|---|---|---|
| Housing Material | Adapter shell material | Zinc alloy, Stainless steel, Aluminum alloy |
| Interface Type | MPO specification | MPO-12, MPO-24 |
| Insertion Loss (IL) | Optical signal attenuation | ≤0.3 dB (Multimode) ≤0.5 dB (Singlemode) |
| Return Loss (RL) | Reflected signal loss | ≥50 dB (UPC, singlemode) ≥60 dB (APC, singlemode) |
| Operating Temperature | Suitable environmental temperature | -40°C ~ +85°C (Industrial grade) |
| Protection Rating | Dust/water resistance | IP67 (Optional) |
| Vibration Resistance | Vibration adaptability | Complies with IEC 61300-2-2 standard |
