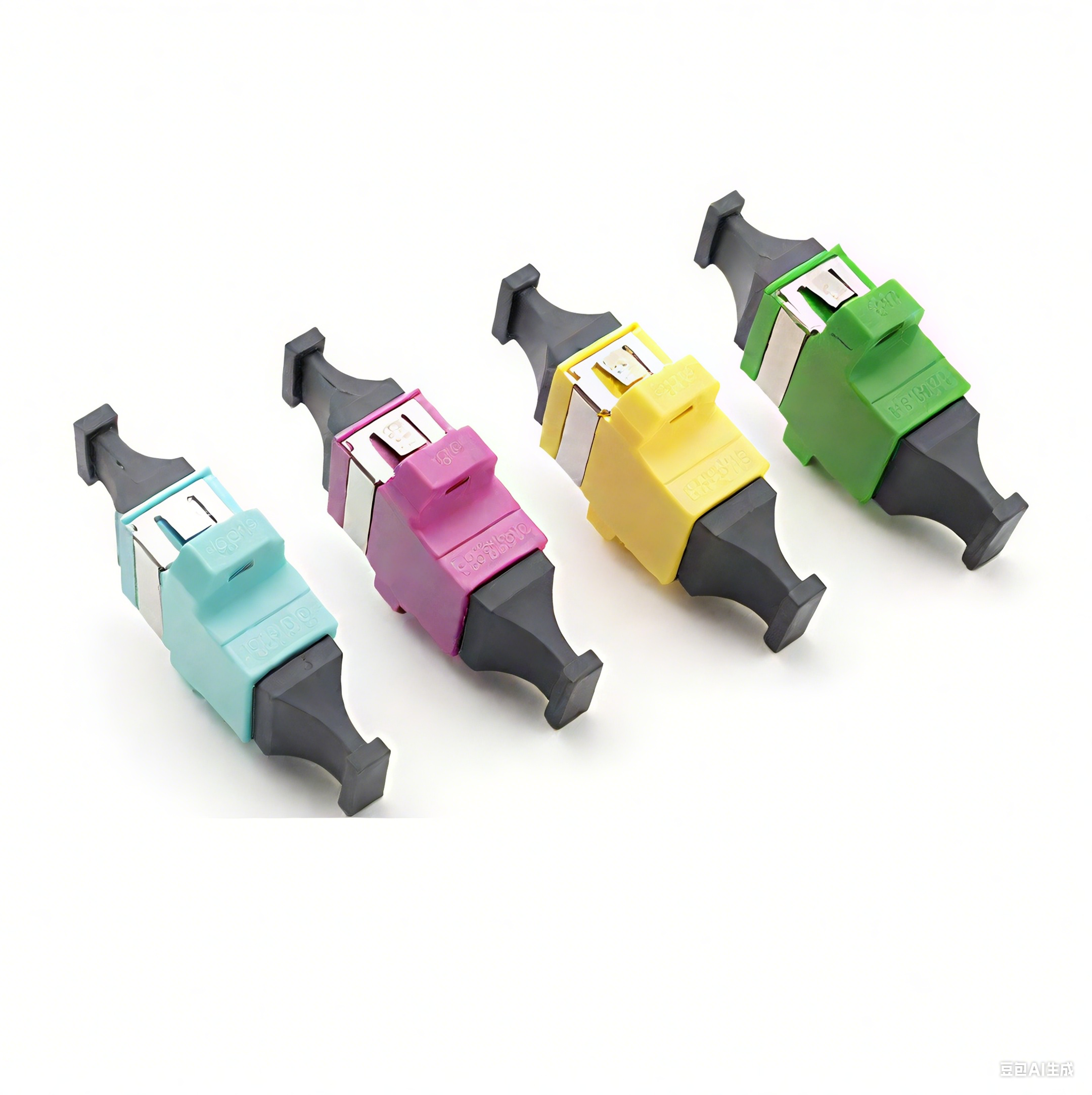

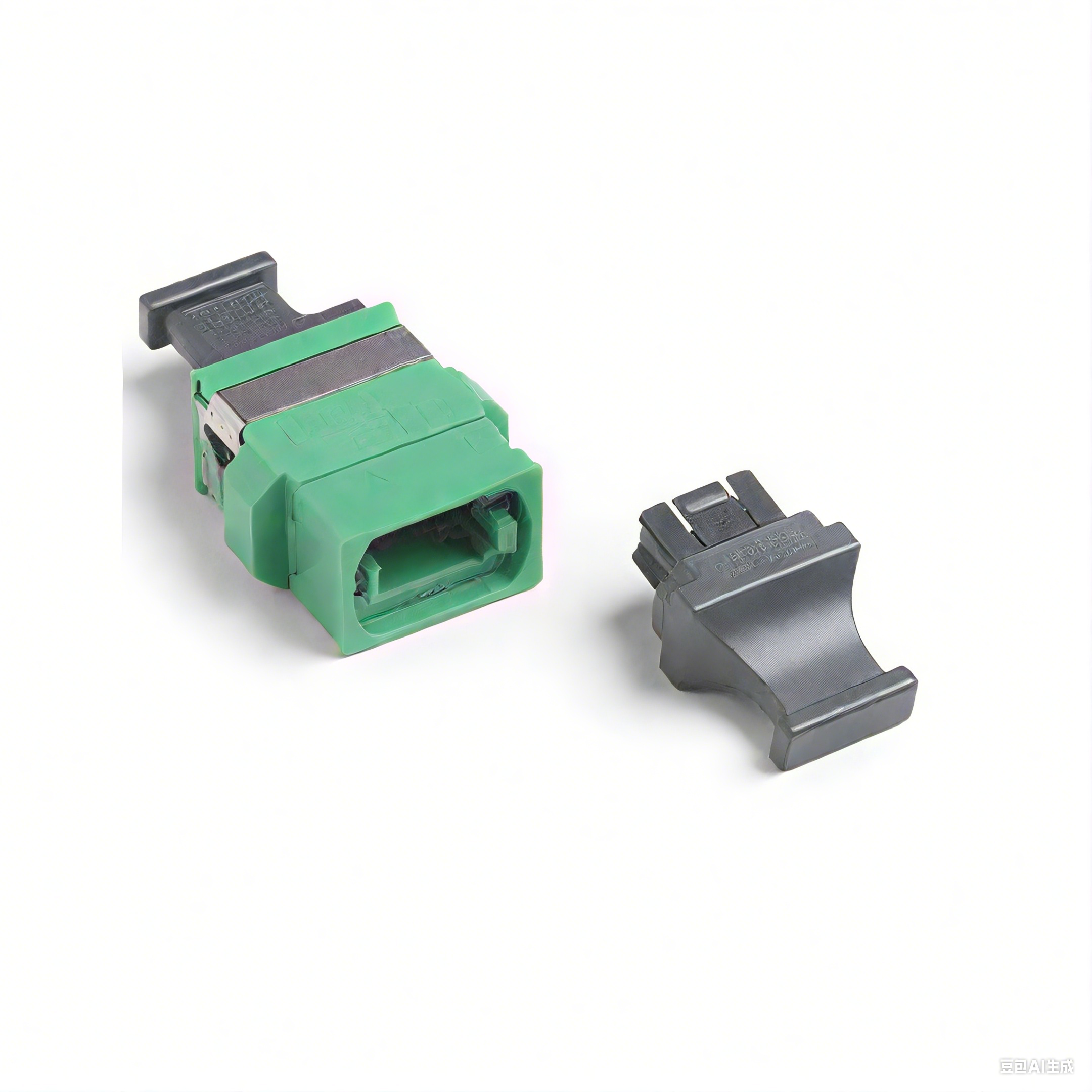

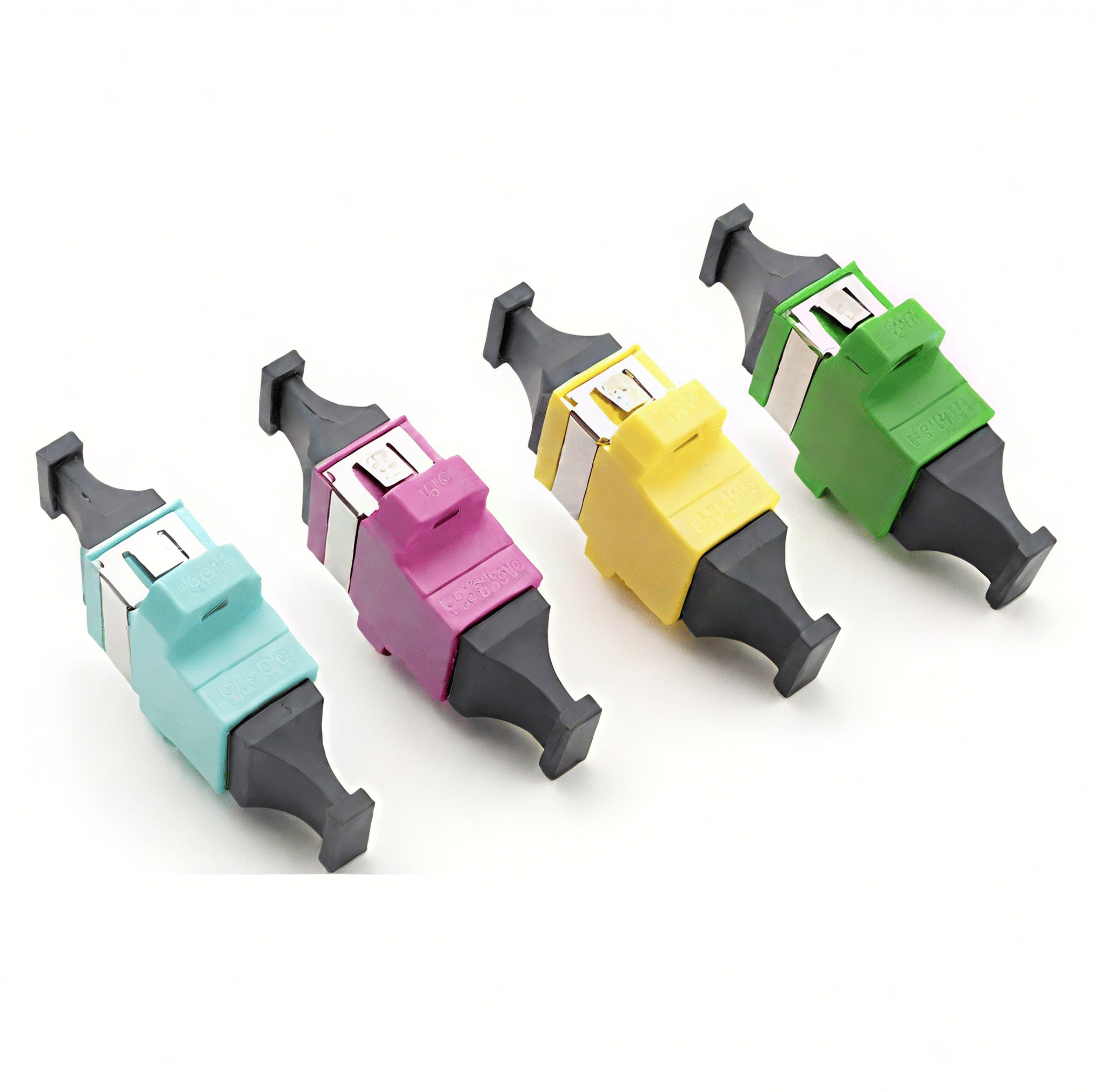

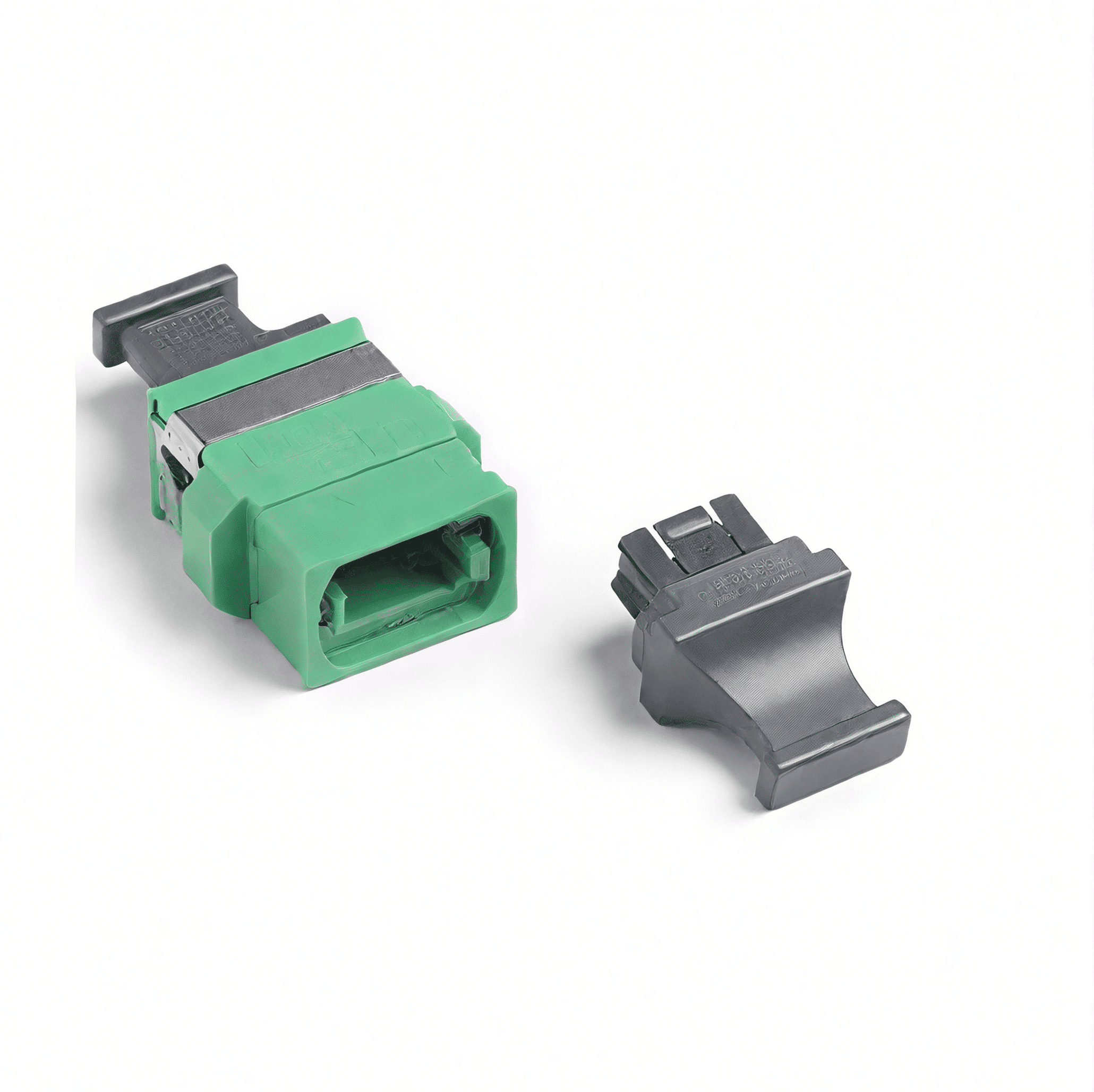

MPO Plastic Adapter
The MPO Plastic Housing Adapter is a fiber optic connection adapter with an engineering plastic housing, which is used for docking MPO/MTP multi-core fiber optic connectors (such as 12-core, 24-core). It is mainly applied in scenarios such as data centers and computer room cabling where weight and cost are sensitive, and is suitable for high-density optical fiber interconnection in standard environments.
- Description
Description
Parameter | Description | Typical Value/Options |
---|---|---|
Housing Material | Adapter shell material | PPS, PA6T (black or light color) |
Interface Type | MPO specification | MPO-12, MPO-24 |
Insertion Loss (IL) | Optical signal attenuation | ≤0.3 dB (multimode) |
≤0.5 dB (singlemode) | ||
Return Loss (RL) | Reflected signal loss | ≥50 dB (UPC singlemode) |
≥60 dB (APC singlemode) | ||
Operating Temperature | Suitable environmental temp | 0°C ~ +70°C (commercial grade) |
Protection Rating | Dust/water resistance (optional) | IP20 (default, non-waterproof) |
Mating Durability | Repeated insertion cycles | ≥500 times |
