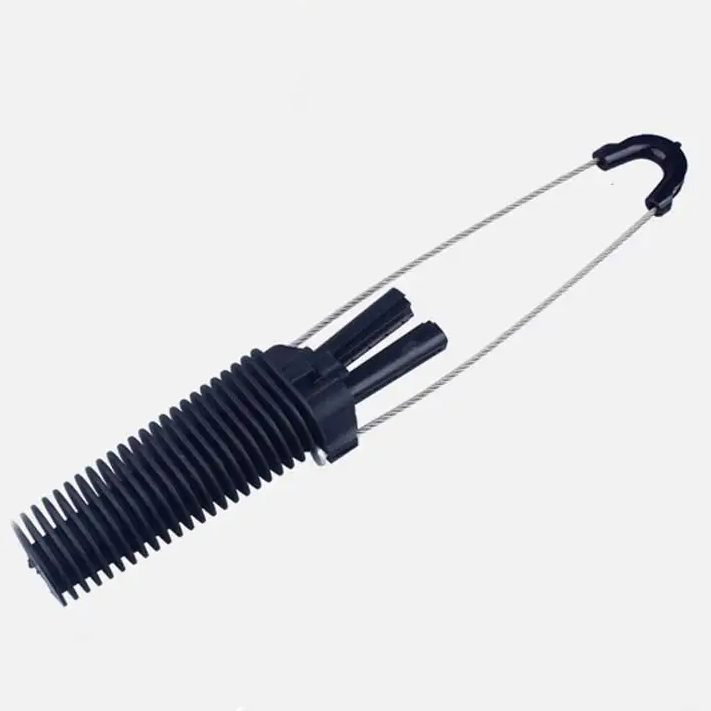

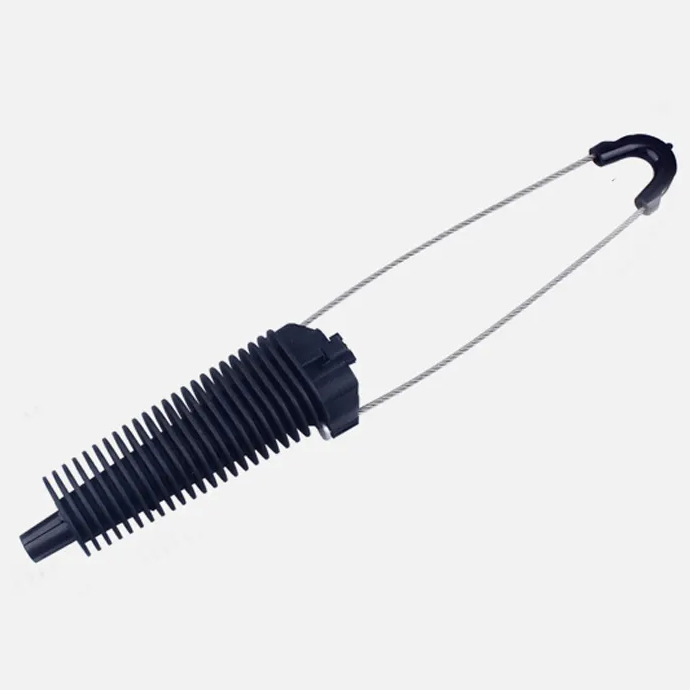

Optical Cable Clamp DT-B08

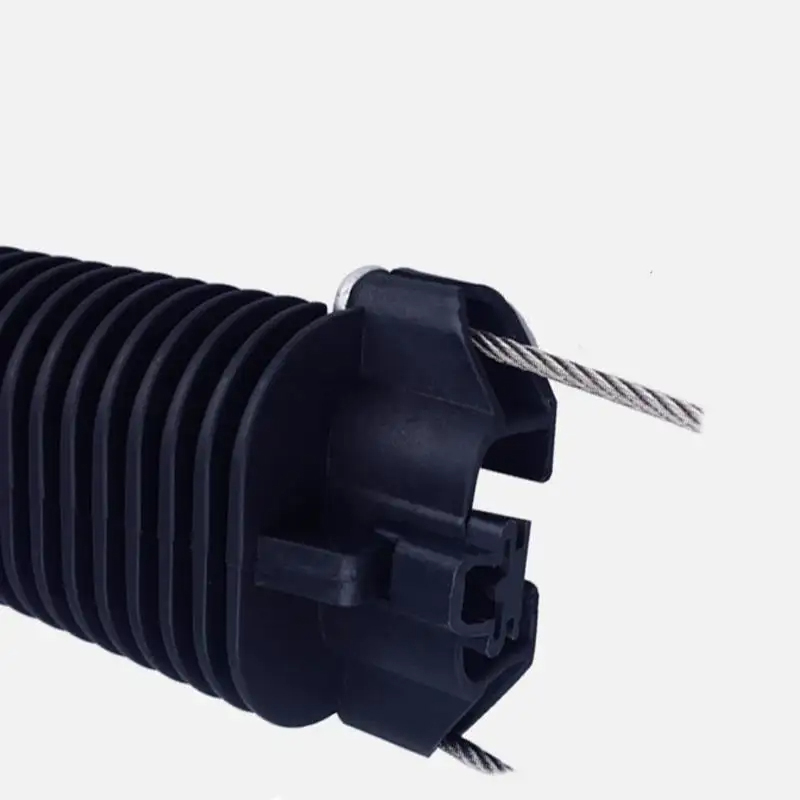

The DT-B08 optical cable clamp is a tension clamp made of 201 stainless steel wire rope and nylon body,It is made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail. Different sizes offer a wide range of gripping capacities and mechanical resistances to fit the various ADSS cable designs.Suitable for wire diameters ranging from 3-7mm, the product is easy to install and has a solid body. With the addition of UV resistant materials, the product has a longer lifespan. The special teeth of the wedge increase the friction force with the optical cable, making it a successful and mature product.

Description

Specifications:

Size: 370*57*34mm

Material: SS201 or SS304, PA6

Withstand tensile force:3.4KN

Weight: 116g

Applicable wire diameter size:Φ3-7mm

Warranty time: 10 years

Features:

1. Thick reinforced nylon shell.

2. High strength 201 304 stainless steel suspension wire.

3. Reinforced nylon compression cable.

4. Super grip strength and pulling force.

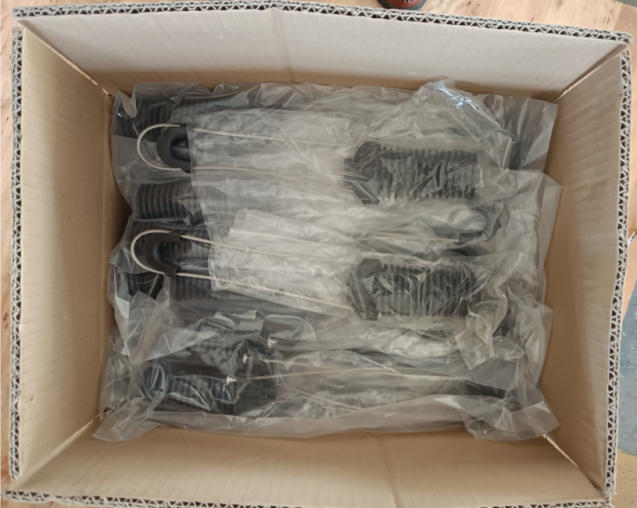

Packaging Information:

Outside the carton size: 40*30*30cm

Outside the carton weight: 10.5kg

Every small bag: 80pcs
