Cable Tension Clamp DT-B05

Fiber Splice Protective Sleeves DT-FPS
Fish Type Tension Clamp DT-A15

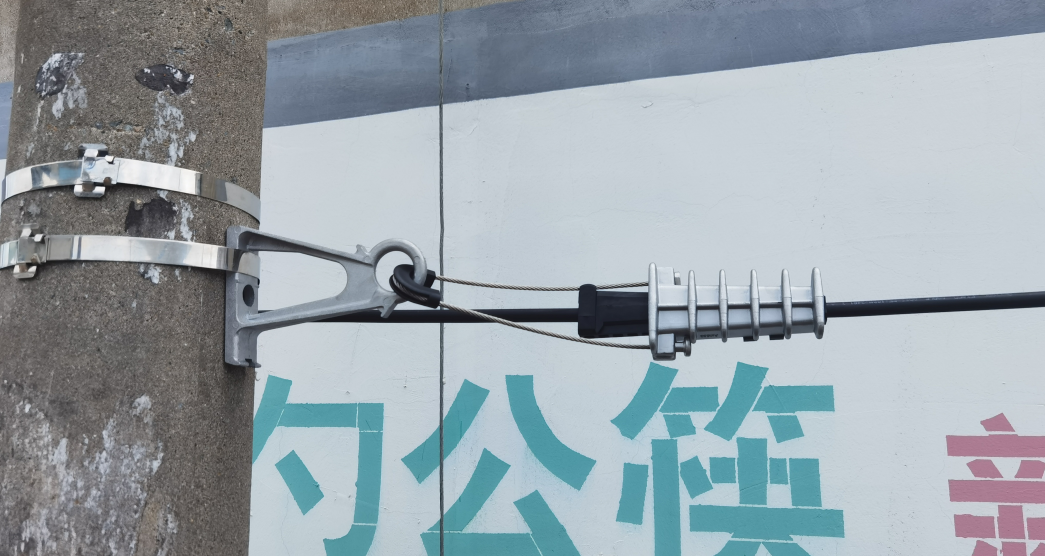

PAL1000(DT-B05A),PAL-1500（DT-B05B）, PAL-2000（DT-B05C）is a strong tensile cable clamp suitable for wire clamps 8-11mm, 10-14mm,12-16mm. The clamp adopts a super strong aluminum alloy shell that is different from ordinary plastic materials, and the shell is integrally formed to provide stable tensile grip support. The inner part is embedded with a strong nylon material wedge, providing stable cable fixation. The steel wire can be selected by the customer as 4.0mm High strength Carbon steel galvanized steel wire. This cable clamp is widely used in various ADSS type optical cables and composite round wire cables, etc.

Categories: ,

Description

Specifications:

Size: 385*80*40mm

Material: PA6 SS201 or PA66 SS201

Withstand tensile force：15KN

Weight: 360g

Applicable wire diameter size：Φ10-14mm

Warranty time: 10 years

Features:

1. Thick aluminum alloy shell.

2. High strength Carbon steel galvanized steel wire.

3. Reinforced nylon compression cable.

4. Super grip strength and pulling force.

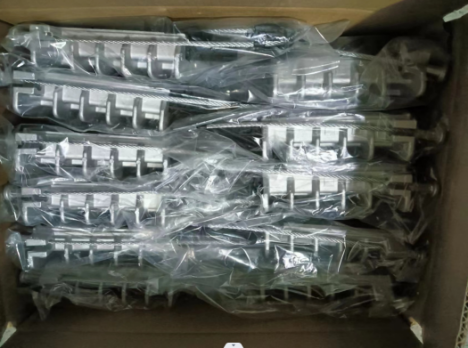

Packaging Information:

Outside the carton size: 40*30*30cm

Outside the carton weight: 21.5kg

Every small bag: 50pcs
