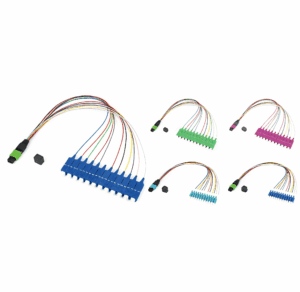

MPO Harness Mould Hybrid Patch Cords

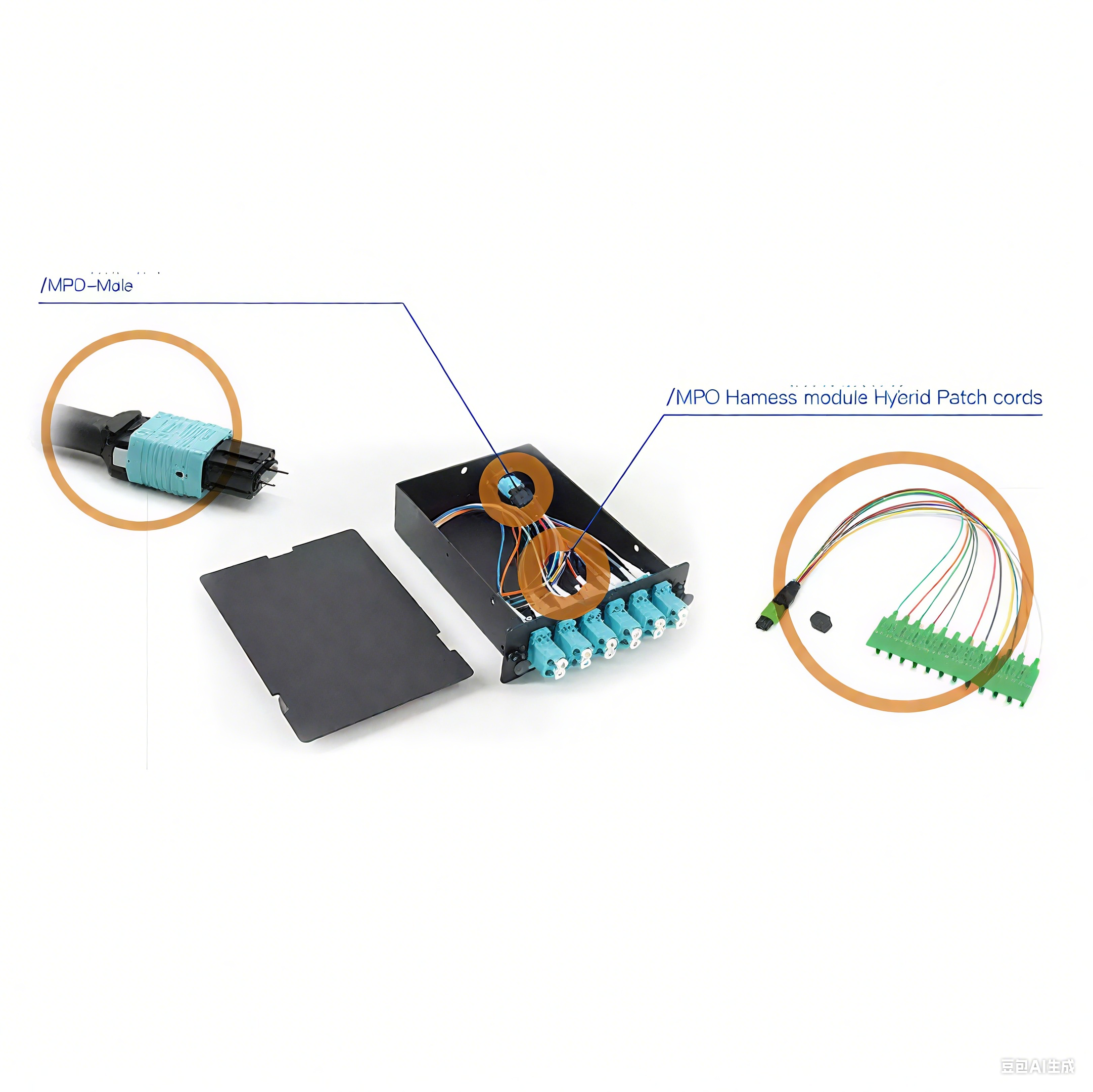

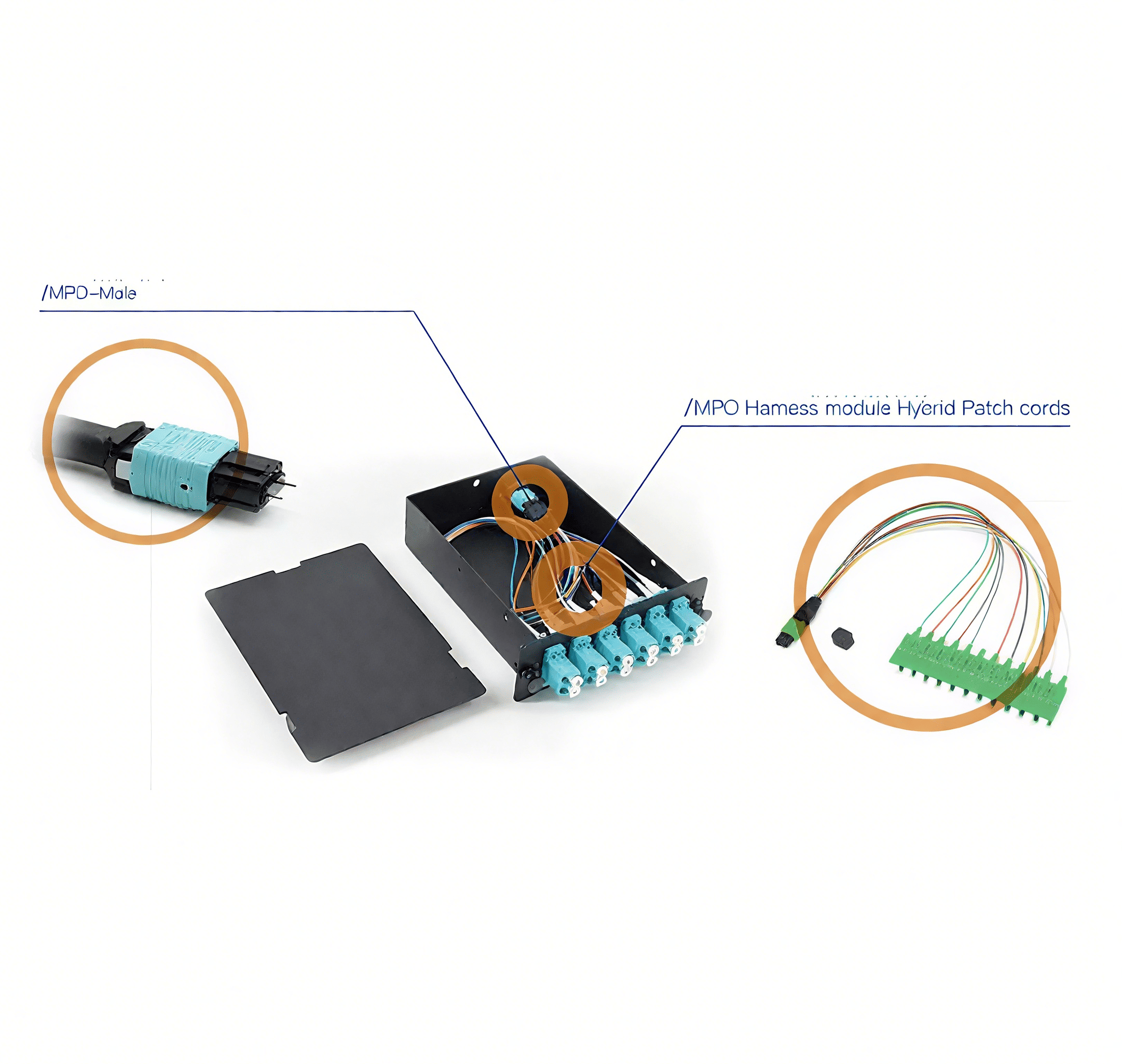

MPO harness mould hybrid patch cords are used in MPO cassette only, such patch cords are short, and OD of the fan-out cables are small. Normally, it’s 0.9mm, and the MPO connector is male.
- Description
Description
| Parameter Category | Typical Options/Values | Explanation |
|---|---|---|
| MPO Specification | MPO-12, MPO-24, MPO-32 | Must match transceiver interface (e.g., 100G-SR4 requires MPO-24). |
| Breakout Connector | LC Duplex, SC, MTP, etc. | LC Duplex is most common for high-speed Ethernet. |
| Fiber Type | Multimode (OM3/OM4), Singlemode (OS2) | OM4 multimode supports 100G-SR4 (100m); OS2 singlemode supports 10km+. |
| Polarity Scheme | Type A, Type B, Type C | Type B is most common (MPO end 1 → Breakout end 12). |
| Insertion Loss | ≤0.5 dB (Multimode), ≤0.7 dB (Singlemode) | Typical values for factory-preterminated cables. |
| Application Scenarios | Data Centers, 5G Fronthaul, HPC | Ideal for high-density breakout requirements. |
