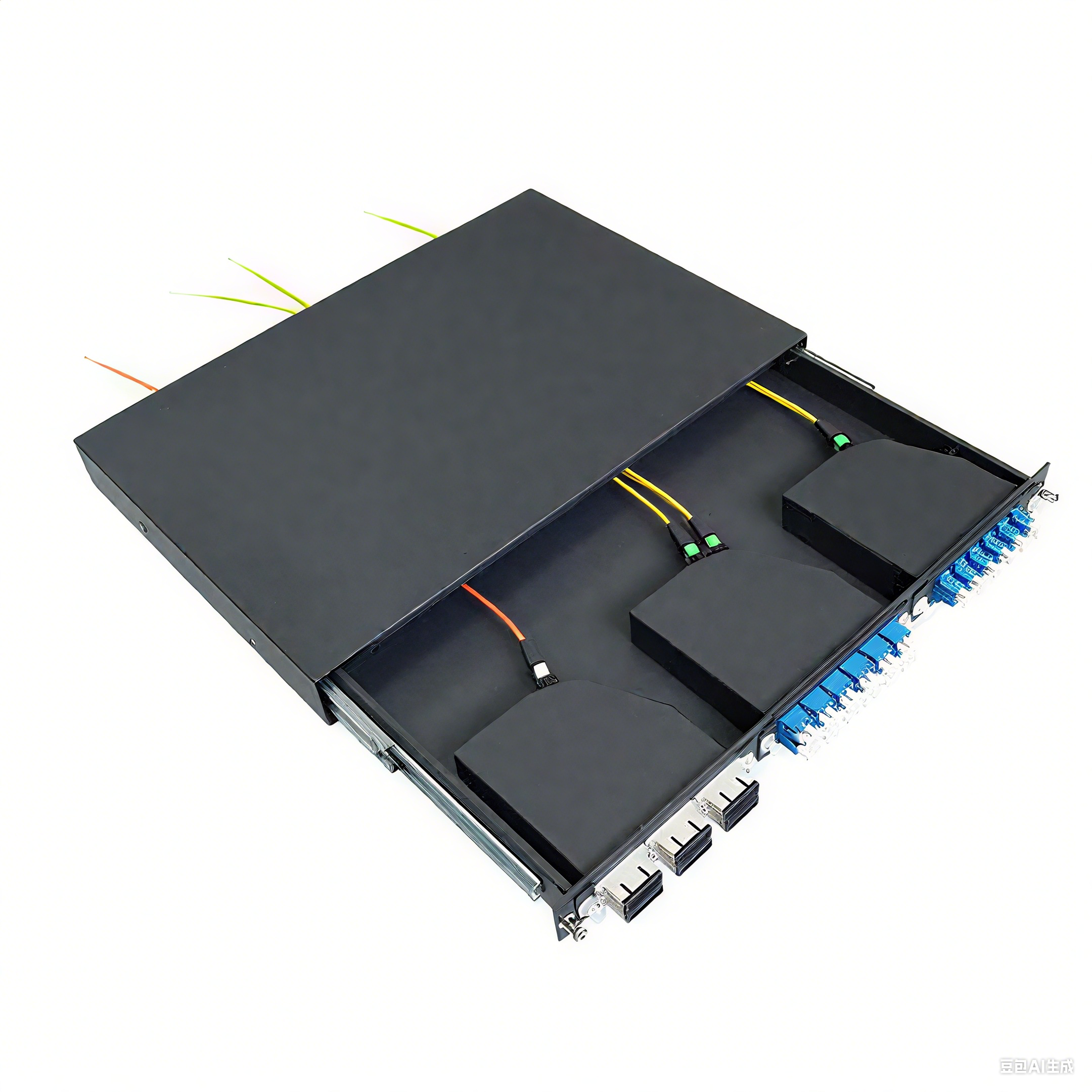

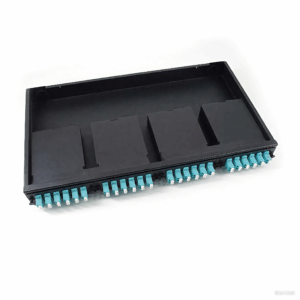

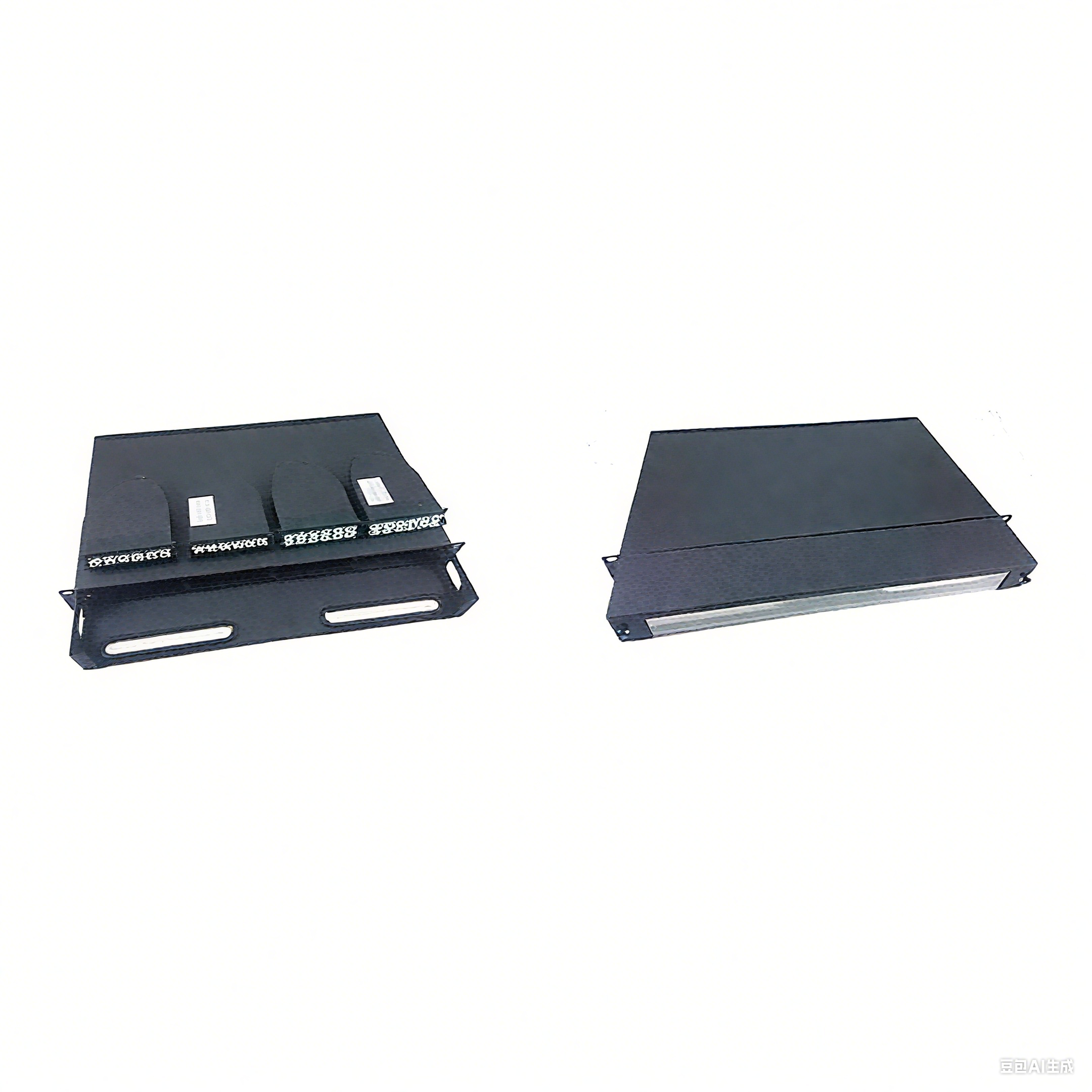

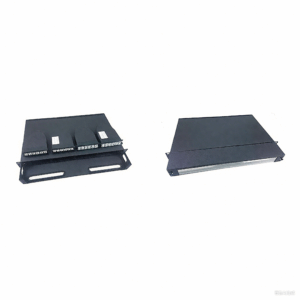

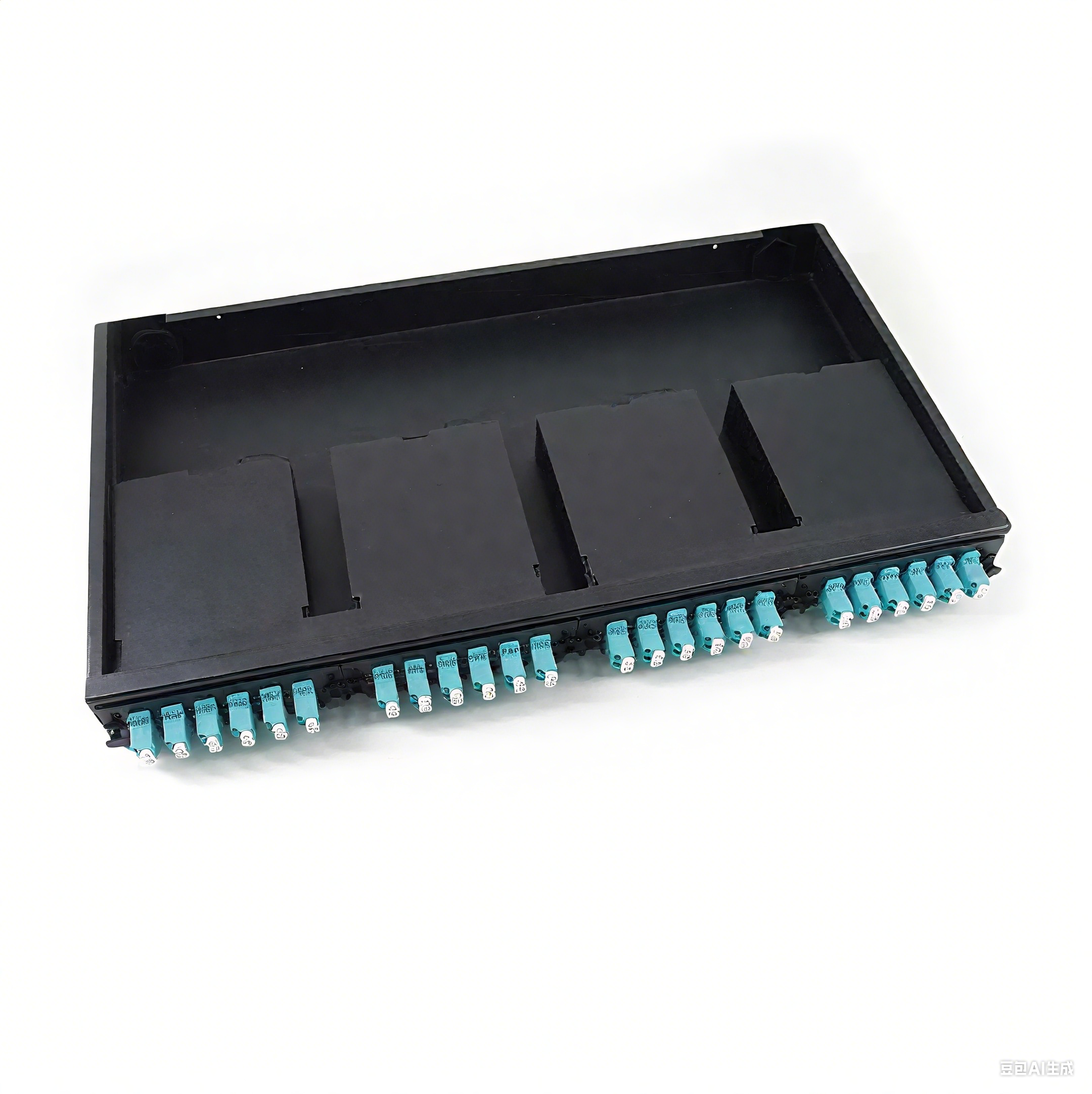

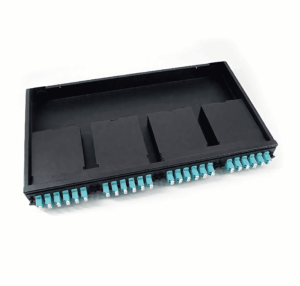

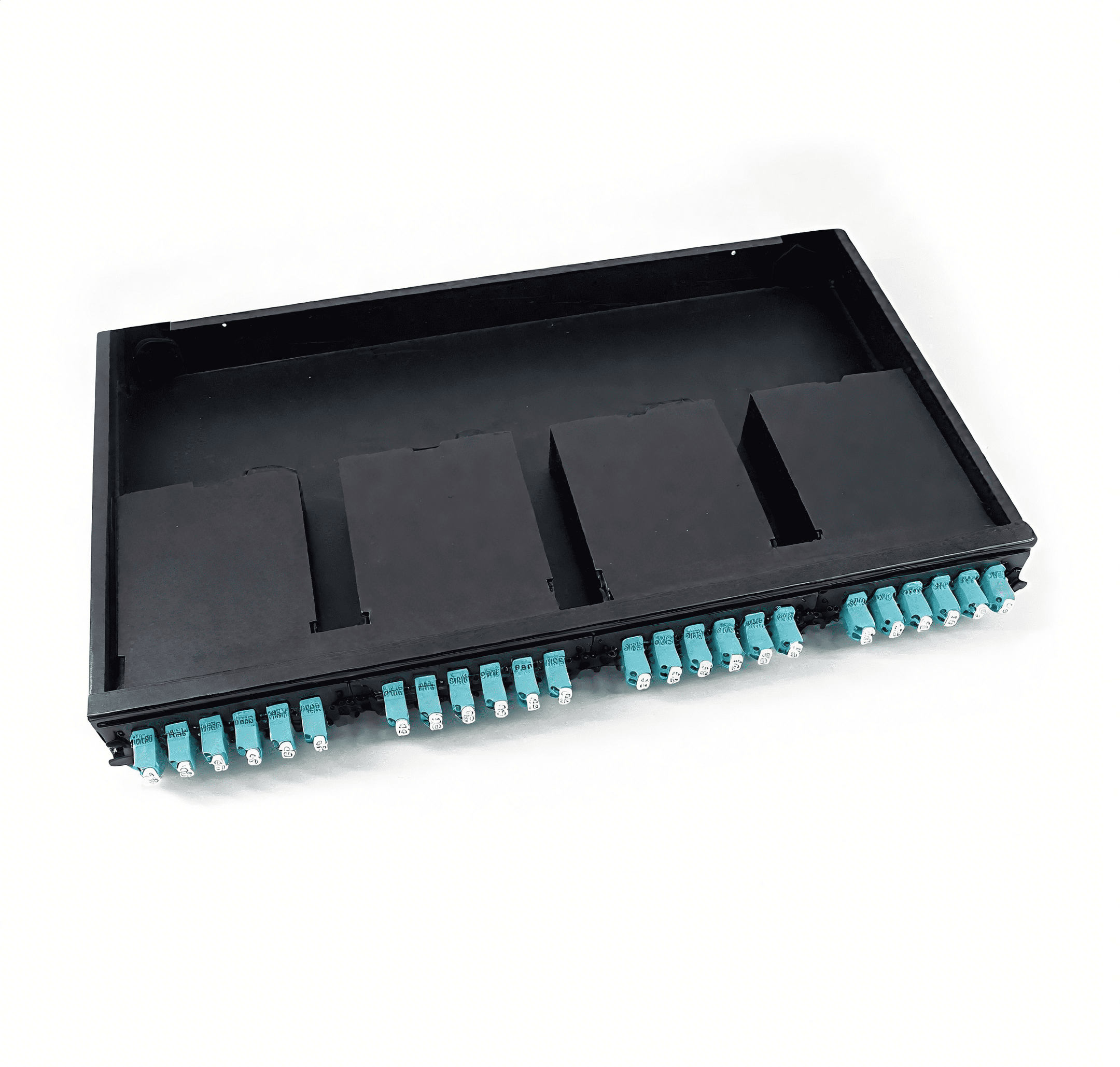

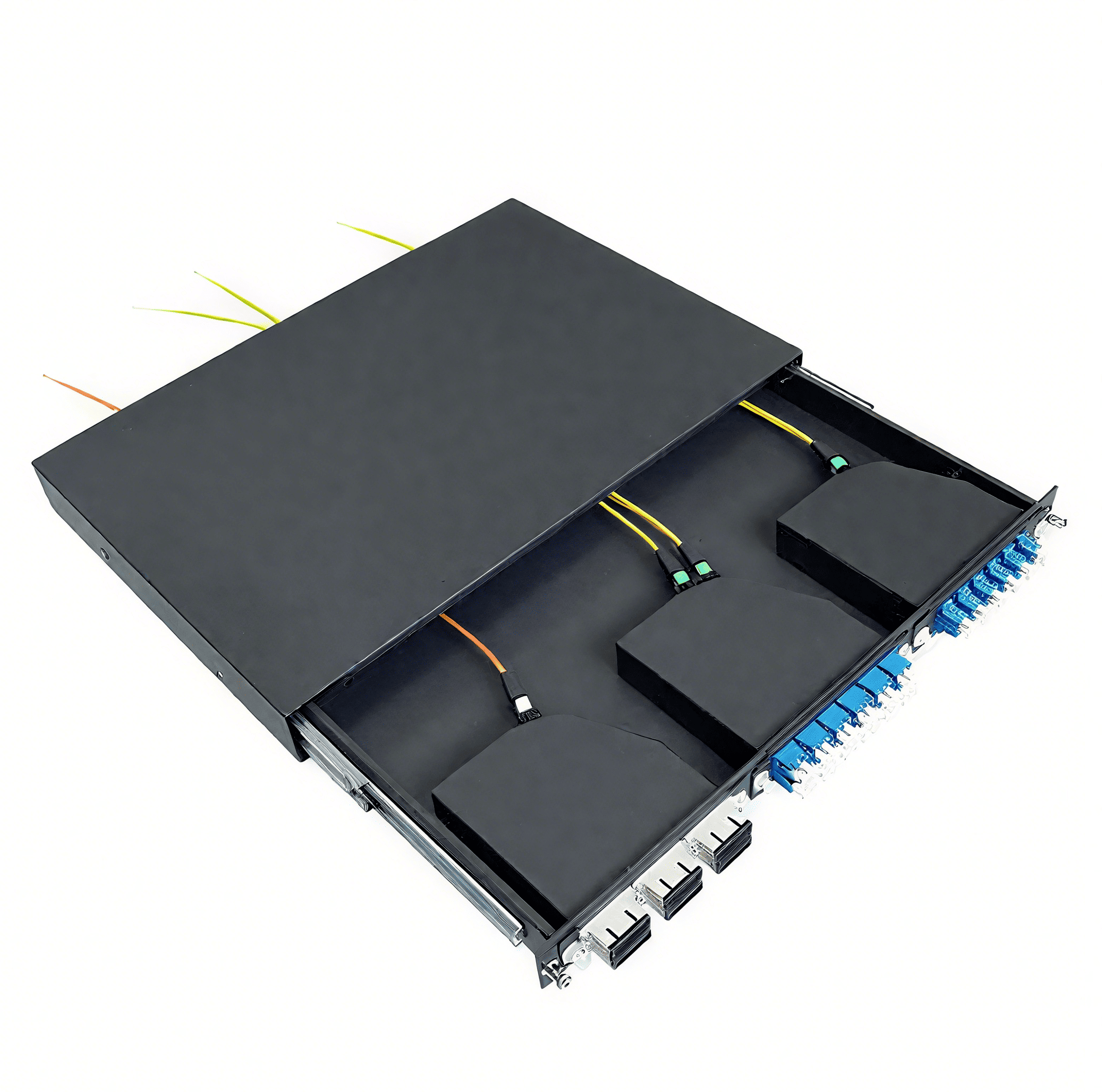

MPO HD Patch Panels
The MPO high-density patch panel is a fiber management device specifically designed for modern data centers and high-speed networks. It is used to centrally terminate, manage, and distribute MPO/MTP multi-fiber connections, enabling high-density, modular fiber optic cabling.
- Description
Description
| Parameter | Options/Typical Values | Selection Considerations |
|---|---|---|
| Adapter Type | MPO-12, MPO-24, MPO-32 | Must match trunk cable fiber count (e.g., MPO-24 for 100G, MPO-32 for 400G). |

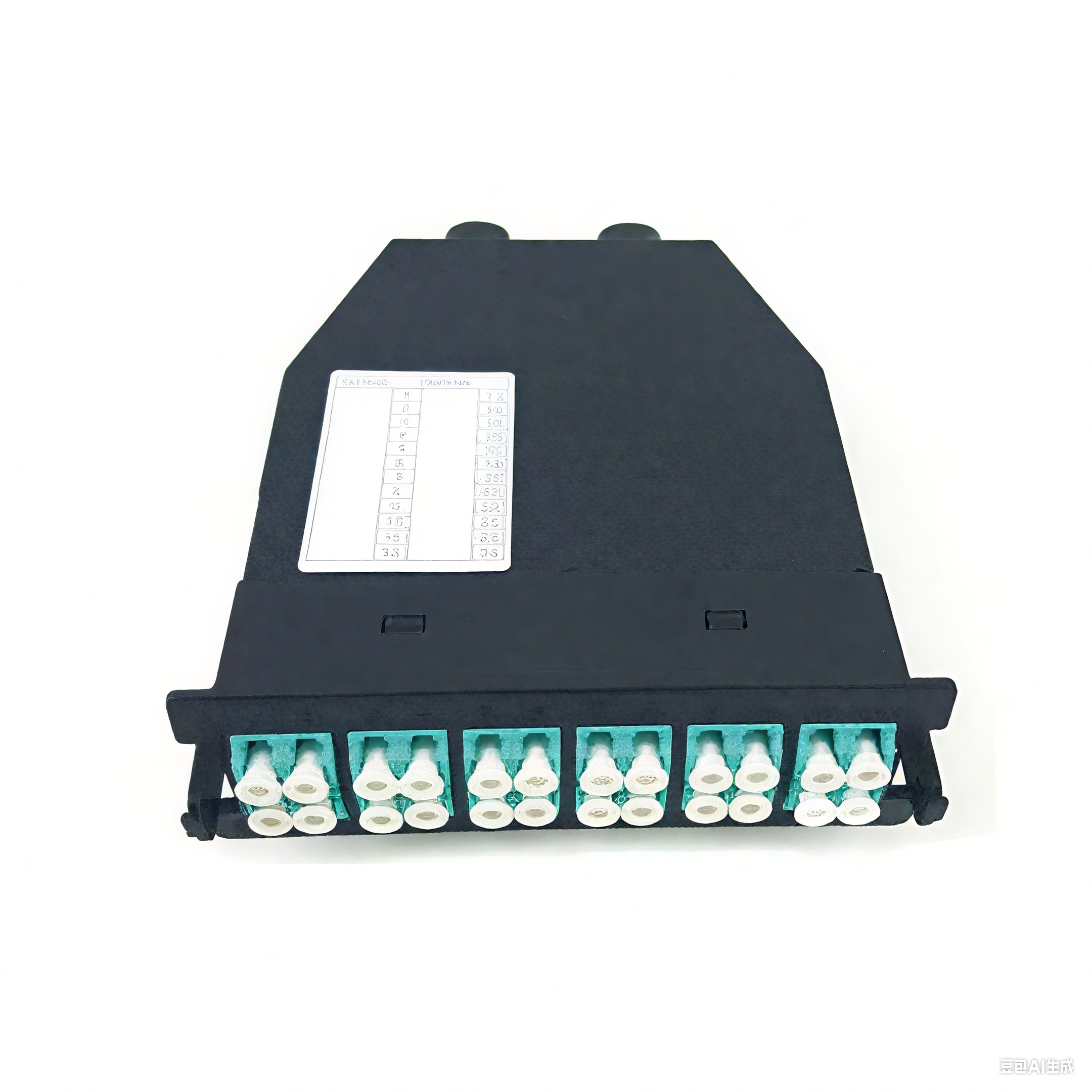

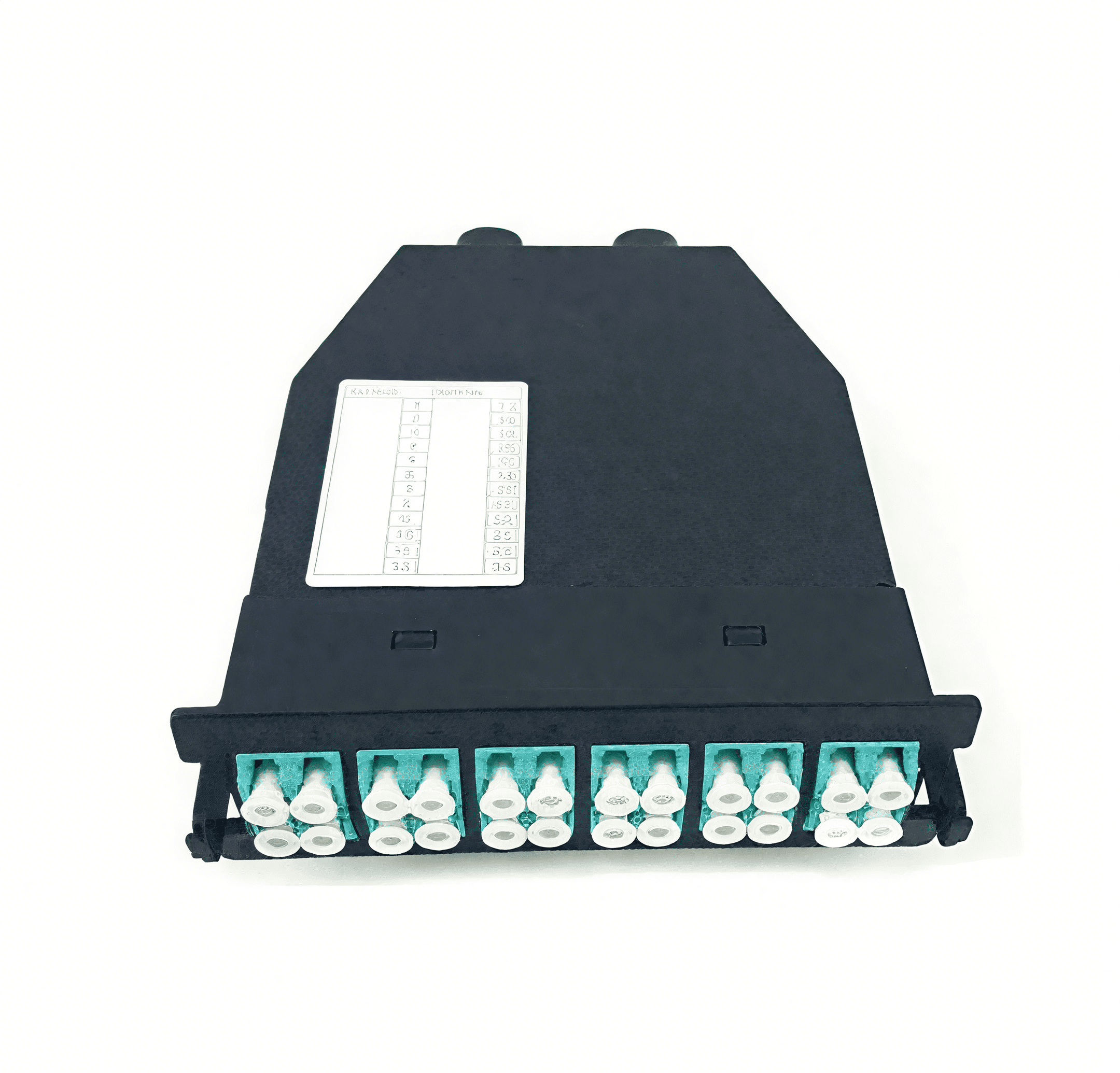

| Interface Module | MPO-MPO, MPO-LC, MPO-SC | MPO-LC modules are most common for breakout cable conversion. |

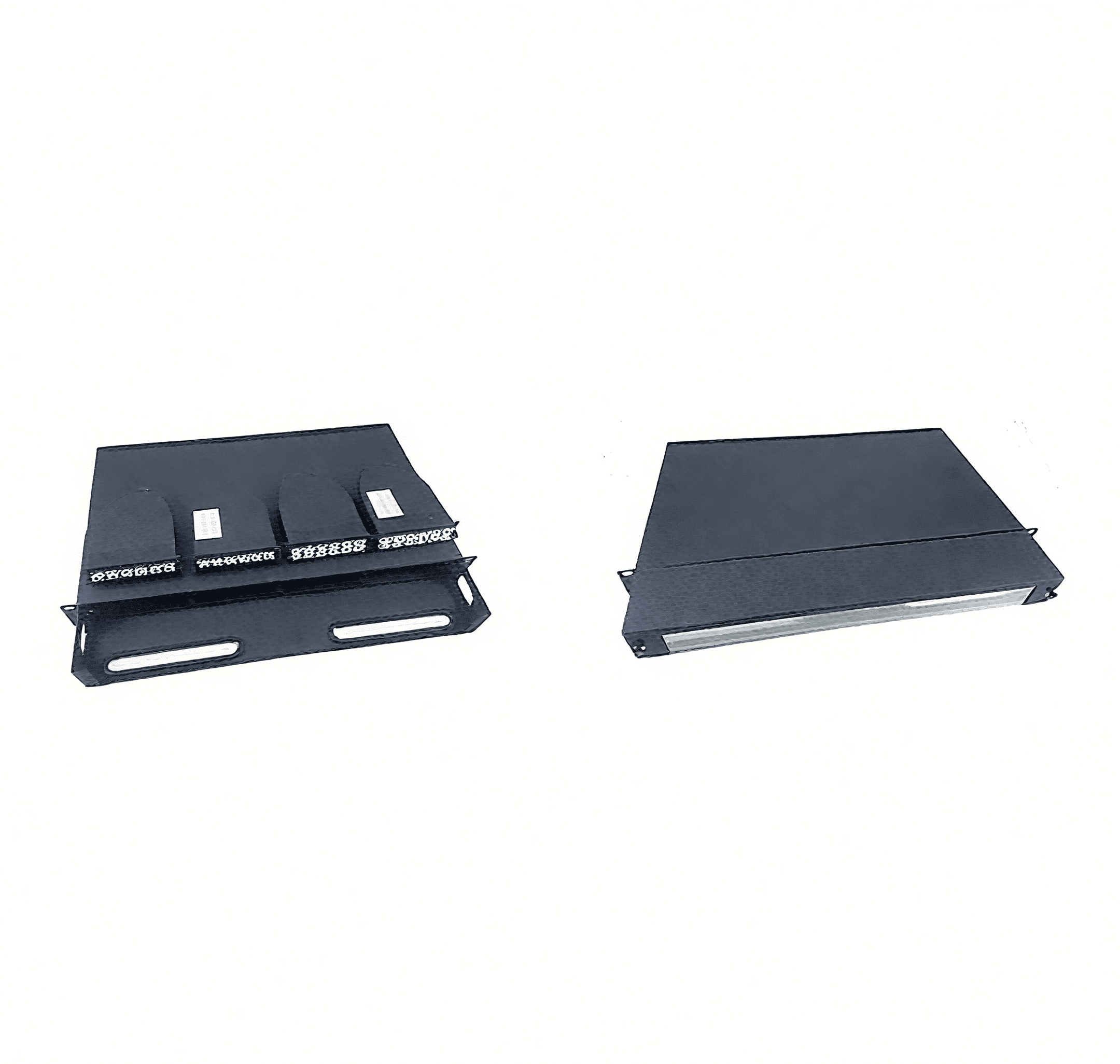

| Mounting Style | Rack-mount (1U/2U/4U), Wall-mount | Select based on cabinet space and port density requirements. |
| Fiber Type | Multimode (OM4/OM5), Singlemode (OS2) | Multimode for short reach (≤150m), singlemode for long distance (≥10km). |
| Fire Rating | LSZH, OFNR, UL94-V0 | LSZH (Low Smoke Zero Halogen) preferred for data centers. |
Key features:
