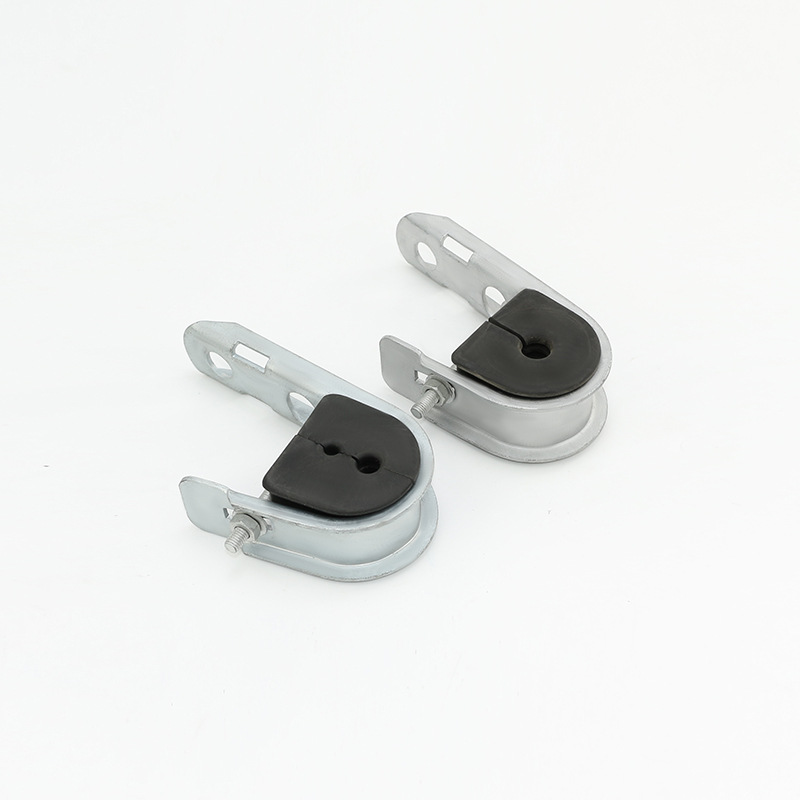

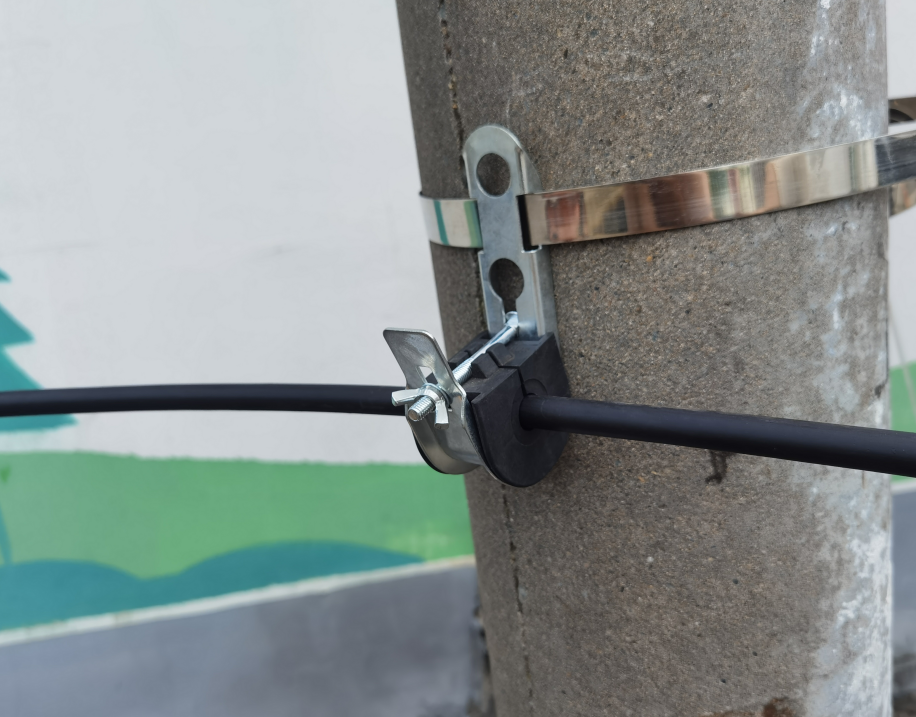

This Suspension clamps is compose of TPR plastic insert and galvanized steel shell.The special wire clamping method of soft glue makes the cable stable and safe.designed to suspend ADSS round optical fiber cable during construction of transmission line. which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical.resistance archived by wide product range, with different sizes of neoprene inserts.The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets.The hook of ADSS clamp can be produced form stainless steel materials according to you request.

Description

Specifications:

Size: 135*80*35mm

Material: TPR & GS

Withstand tensile force:3.8KN

Weight: 156g

Applicable wire diameter size:Φ15-20mm

Features:

1. Special fixing method of soft rubber TPR.

2. Tool free installation.

3. Suitable for a full range of  cable diameters from 5-20mm.

4. Small diameter optical cable can clamp N roots.

5. High mechanical tensile strength.

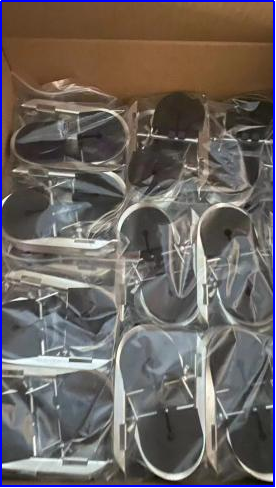

Packaging Information:

Outside the carton size: 40*30*30cm

Outside the carton weight: 15.6kg

Each box number: 100pcs

Every small bag: 4pcs
