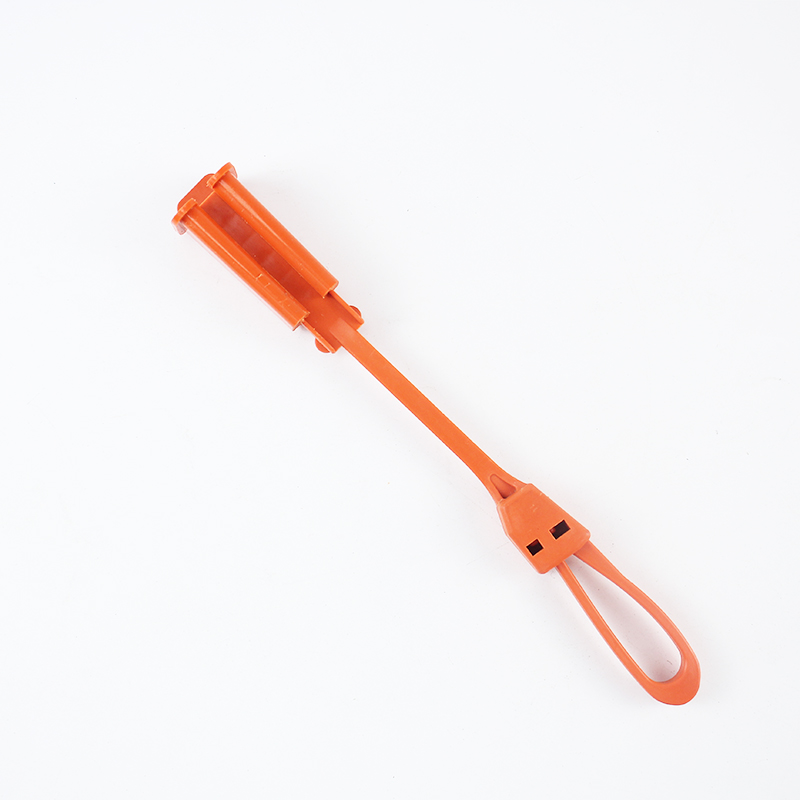

Plastic Tension Clamp DT-A08O

Plastic Drop Cable Clamp DT-A08B
S Hook Tension Clamp DT-A09S

Polyamide clamp is a type of plastic cable clamp, Product use high-quality UV resistant thermoplastic processed by injection molding technology, which is widely used to support Telephone cable or butterfly introduction optical cable at span clamps , drive hooks and various drop attachments. Polyamide clamp consists of three parts: a shell, a shim and a wedge equipped .The working load on the support wire is effectively reduced by the insulated drop wire clamp. It’s characterized by good corrosion resistant performance, good insulating property, and long life service.

Categories: ,

Description

Specifications:

Size: 230*27*27mm

Material: PA6 or PA66

Withstand tensile force：0.6KN

Weight: 44g

Applicable wire diameter size：Φ2-8mm

Warranty time: 10 years

Features:

1. Good anti-corrosion performance.

2. High strength.

3. Abrasion and wear resistant.

4. Maintenance-free.

5. Easy installation.

6. The serrated shim increases the adhesion of  nylon clamp on cables.

7. The dimpled shims protect cable jacket from being damaged.

Packaging Information:

Outside the carton size: 40*30*30cm

Outside the carton weight: 10kg

Each box number: 300pcs

Every small bag: 10pcs
